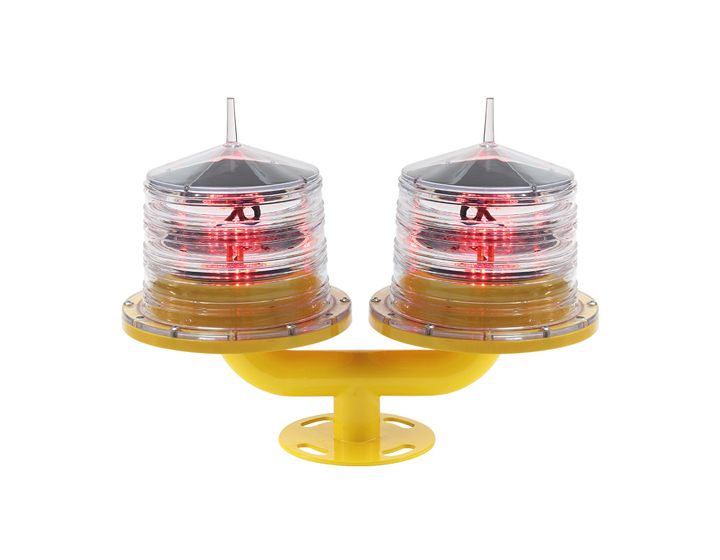

The solar powered low intensity aviation obstruction lights meeting ICAO requirements for Low-Intensity Obstacle Lights Type A and Type B, is being applied to the towers (electricity transmission tower, telecom, GSM), high-rise buildings, bridge, harbor, marine cranes, construction machinery, offshore wind turbines etc. for aircraft warning purpose and it is usually used for the obstacles less than 45m high. besides, the aviation lights can also be used in the small airports for runway and taxiway lights, and heliport/helipad use.
Easy Operation
•The on/off switch is on bottom
•Steady and flashing selection button (one working mode in a light is available)
•Programmable with optional IR remote
Intelligent Energy Management
•Mono type, high-efficiency solar panel.
•Maximum Power Point Tracking (MPPT)
•Advanced Energy Management System (EMS)
•Reliable lithium battery ensures the transport safety and operation durability
Durable, Free Maintenance
•Self-contained, Compact, stand-alone, maintenance-free unit
•Industrial-grade PC and aluminum base extends the super long lifespan.
•Top class LEDs, battery, circuit board bring super quality
•Cable-free mounting saves you space and cost.
•IP68 waterproof level applicable for any using circumstances all over the world
•Tens of thousands of installations worldwide

Technical Data
Optical
- High powered LEDs ensuring consistent photometrics for life of product with more than 4NM visual range
- Meets the requirements of FAA and ICAO regarding low intensity Obstruction Light (Red).
- the American brand LED beads reaches more than 100,000 hours in its working lifespan
- chromaticity: Red, Green, White, Yellow and blue
- Steady-on and flashing pattern and flashing frequency can be customized
 Energy Collection
- 1.8W 5V mono type class A high-efficiency solar cells with more than 20 years lifespan
- Maximum power point tracking (MPPT) for optimal energy management
 Energy Storage
- high quality replaceable lithium battery with 3.2v/3.7AH in capacity(can be expanded)
- 55¡æ¡«85¡æ Temperature operating range
- Designed for 8 years battery life; Replaceable and recyclable
Automatic Operation Control
- Automatic on and off output(dual lights can work same time or single lights works and the other one to be backup)
- Intensity: flashing Red-20cd, Yellow-20cd, Green-32cd, Blue-20cd, White-32cd
                 Steady Red-10cd, Yellow-10cd, Green-32cd, Blue-18cd, White -32cd
- 30 autonomy days (10 hours per day) in flashing pattern
Programming
- Programmable with optional infrared programmer
- Remote control optional
- GPS Synchronization Optional GPS enables two or more lights to flash in same frequency
Light Construction
- Premium grade UV resistant, polycarbonate housing and lens
- Polycarbonate/aluminum base
- Environmental-friendly, durable electrical parts.
- Thermoplastic gaskets
- IP68 waterproof and self-contained battery, solar panels
- Bird deterrent included or can be removed before delivery
Mounting :¡é170mm¡ÁM6 £¨base struction is optional and need to be customized£©
Wind Loading: 80 m/s
Weight:  1kg net weight per light without base structure
Dimension: 186mm£¨D£©¡Á190mm£¨H£©
